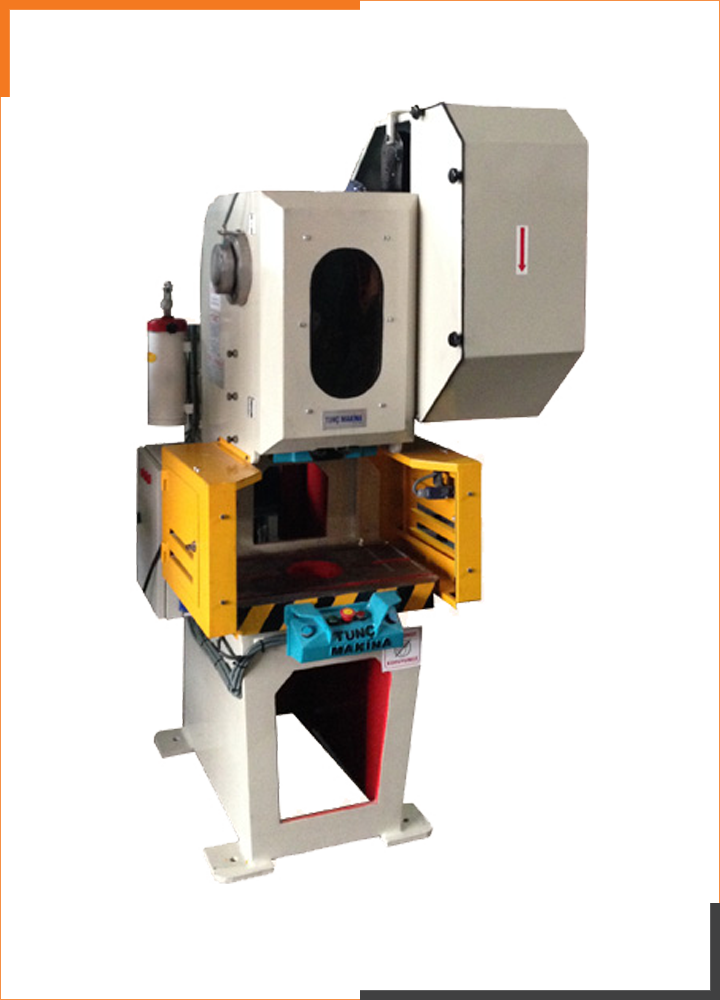

C TYPE AIR CLUTCHED PRESS - 10 TONNES
Our C type mechanical presses can be produced up 10 tonnes to 300 tonnes with ISO and CE norms.
STANDARD FEATURES
Easy and safe operation
High efficiency
Made by 4140 steel material
Welding construction steel body
Air clutch, pneumatic system
Complete centralized lubrication
Manuel enrollment key
Compliant with occupational safety legislation
High efficiency
Made by 4140 steel material
Welding construction steel body
Air clutch, pneumatic system
Complete centralized lubrication
Manuel enrollment key
Compliant with occupational safety legislation
TECNICAL PROPERTIES
| TONNE | 10 |
| STROKE ADJUSTMEN (mm) | 0-65 |
| SPEED (D/dk) | 130 |
| BED AREA (mm) | 280x380 |
| DISTANCE BED TOSTIDE (mm) | 240 |
| HOLE IN SLIDE (mm) | 25 |
| HOLE IN BED (mm) | 80 |
| WEIGHT (kg) | 650 |
| MOTOR POWER (Hp) | 1.5 |
| SIZE x - z - y (mm) | 650-1100-1500 |
